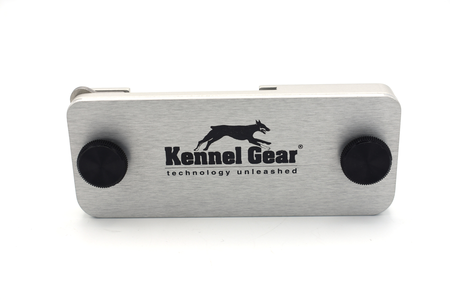

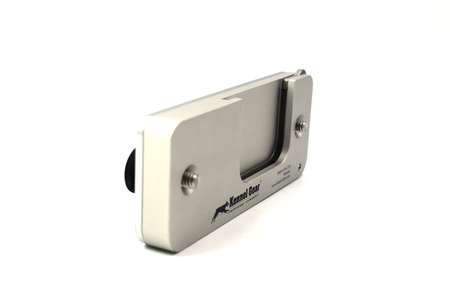

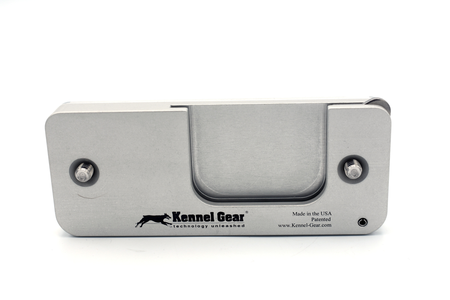

5" Wide Dog Kennel Bar Mount System — Piranha Lox® Bar Mount for Wider Bar Spacing on Kennel Panels, Crate Doors, and Commercial Kennel Installations
The Kennel Gear 5" Wide Bar Mount System is the Piranha Lox® dog kennel bar mount built for kennel panels, crate doors, and bar systems where standard mount clearance falls short. At 3 5/8" between thumbscrews — compared to 2 5/8" on the standard bar mount — the wider body spans bar spacing that the standard system cannot bridge, giving installations with broader panel configurations a secure, stable attachment point for compatible Kennel Gear bowls, pails, and other accessories. Made in the USA.
Key Features
- Piranha Lox® 5" wide dog kennel bar mount system — accepts the insert block built into all compatible Kennel Gear bowls, pails, and other accessories; spring-loaded release tab disengages any insert block in one motion without tools
- 3 5/8" clearance between thumbscrews — spans wider bar spacing on kennel panels and crate door configurations where the standard 2 5/8" clearance bar mount cannot seat correctly
- Attaches to vertical or horizontal kennel bars — compatible with welded wire kennel panels, transport crate doors, and commercial and veterinary kennel bar systems with wider bar spacing
- Two 0.75" stainless steel thumbscrews — tool-free installation and repositioning along the bar for height adjustment without drilling or permanent modification
- Anodized aluminum construction — corrosion resistant for daily use across boarding facilities, veterinary wards, and K-9 transport environments
- Compatible with all Kennel Gear universal insert mounts — bowls with yokes, pails with insert blocks, IV poles, supply caddies, and any accessory with a compatible insert block
- Made in the USA
The clearance measurement is the deciding factor between the standard and wide bar mount. When the vertical bar spacing on a kennel panel or crate door exceeds 2 5/8", the standard thumbscrews cannot reach past the bars to clamp the back plate securely — the wide bar mount resolves that with 3 5/8" of clearance that covers the broader spacing found on certain commercial kennel panel systems, heavy-gauge crate doors, and non-standard bar configurations. Always measure bar spacing before selecting a mount. For panels with spacing beyond 3 5/8", the Extra Wide Bar Mount provides 5 1/4" of clearance.
For chain link fence installations, see the dedicated Chain Link Fence Mount. For installations within standard bar spacing, see the ½" Bar Mount System. Compatible accessories include the 4 Quart Stainless Steel Pail with Insert Block and the full range of Kennel Gear stainless steel bowl and pail systems. For full bar spacing specifications and clearance measurements, refer to the Kennel Gear System Fit and Compatibility Guide.
What’s Included

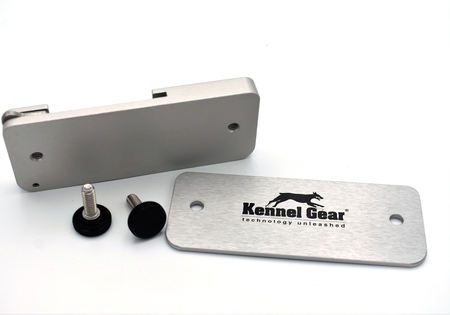

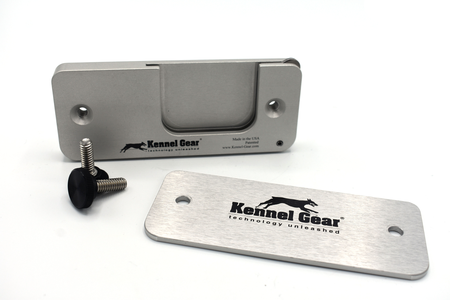

- 5" wide anodized aluminum dog kennel bar mount with spring-loaded release tab
- Two 0.75" stainless steel thumbscrews
Dimensions
- 5.00" L x 2.00" H x 0.625" D
