½" Wide Dog Kennel Surface Mount — 5" Piranha Lox® Locking System for High-Use Boarding Facilities, Veterinary Wards, and Fixed Kennel Installations

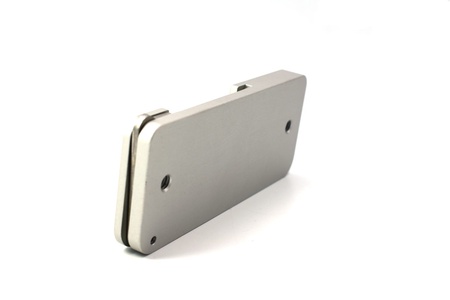

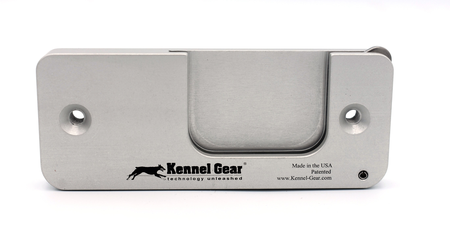

The Kennel Gear ½" Surface Mount 5" Wide is the Piranha Lox® dog kennel surface mount built for installations where additional stability and load support are a priority. At 5" wide — compared to 3.125" on the standard mount — the wider profile distributes load across a larger footprint, giving high-use kennel wall mount installations a more secure foundation for heavier bowls, pails, or other accessories on surfaces where additional bearing surface improves long-term hold. Same anodized aluminum construction and full Piranha Lox® locking performance, with the wider geometry that demanding installations require.
Key Features
- 5" wide Piranha Lox® dog kennel surface mount — accepts the insert block built into all compatible Kennel Gear bowls, pails, and other accessories; spring-loaded release tab disengages any insert block in one motion without tools
- 5" wide profile distributes load across a larger footprint — increased stability and bearing surface versus the standard 3.125" mount for high-use kennel wall mount installations
- Mounts to any flat kennel surface — walls, wood posts, kennel doors, and panel faces where a wider, more stable dog kennel mounting hardware footprint is required
- Two horizontal centrally aligned threaded countersunk holes — secure, flush installation into kennel panels, doors, and flat surfaces
- Anodized aluminum construction — corrosion resistant and low profile for years of daily use in commercial kennel and veterinary environments
- Compatible with all Kennel Gear universal insert mounts — bowls with yokes, pails with insert blocks, IV poles, supply caddies, and any accessory with a compatible insert block
The wider mount footprint is particularly useful in high-throughput boarding facilities and veterinary wards where bowls and pails are detached and reinstalled repeatedly throughout the day and where surface materials — composite panels, painted cinder block, or laminated wood — benefit from load being spread across more contact area. For installations where the standard 3.125" mount provides sufficient stability, the ½" Surface Mount is the right choice. Where the wider footprint is needed alongside gloved-hand operation, see the ½" Surface Mount 5" Wide with Extended Lever.
The 5" wide dog kennel surface mount installs with the same two-screw process as the standard mount and accepts the full range of compatible Kennel Gear bowls, pails, and other accessories. Compatible bowls and pails include the 4 Quart Stainless Steel Pail with Insert Block and the full range of Kennel Gear stainless steel bowl and pail systems. For complete compatibility details across the accessory range, refer to the Kennel Gear System Fit and Compatibility Guide.
What’s Included
- ½" anodized aluminum 5" wide dog kennel surface mount with spring-loaded release tab
Dimensions
- 5.00" L x 2.00" H x 0.50" D
