Kennel Gear Brand, 360 Versa Feeder Standard with Bones

360 Versa Feeder with Bones — Rotating Door Dog Kennel Feeder for Boarding Facilities and Veterinary Clinics

The Kennel Gear 360 Versa Feeder with Bones is an aluminum rotating door kennel feeder engineered for commercial boarding facilities, veterinary clinics, and original equipment manufacturers building kennel systems. The 360-degree swivel door streamlines feeding and watering routines while keeping handlers clear of anxious or aggressive animals during the process. Made in the USA.

Key Features

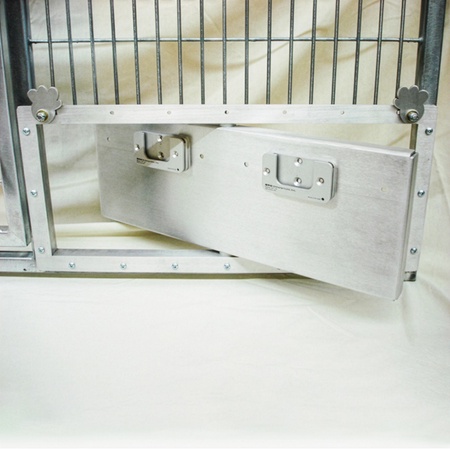

• 360-degree swivel aluminum door — rotates fully to present bowls and pails to the dog for feeding and watering, or swings to the handler side for filling and servicing without opening the kennel
• Piranha Lox® locking technology — the two included bar mount systems accept the insert block built into all compatible Kennel Gear pails and the yoke built into all compatible Kennel Gear bowls; spring-loaded release tab disengages any insert block or yoke in one motion without tools
• Bones locking tabs — rotate to lock the swivel door in place during feeding or secure it closed between service intervals; also available with Paws locking tabs, which are identical in function
• Adjustable slot mounting — two slots on each side of the center pivot allow independent height adjustment of bowls and pails to accommodate dogs of different sizes
• Fixed center mounting — two sets of pre-drilled center holes accept a double bowl system; upper position for taller dogs, lower position for shorter dogs
• Pre-drilled aluminum frame — installs to walls, welded wire panels, chain link, glass, or other kennel structures; mounting method determined by the installer based on the kennel environment
• Made in the USA

The 360 Versa Feeder is built for facilities where feeding and watering efficiency and handler safety are operational priorities. The rotating door eliminates the need to open the kennel during feeding rounds — the handler rotates the door to the fill position, loads the bowls and pails, then rotates back and engages the Bones locking tabs to secure the door. When it is time to present food and water to the dog, the tabs disengage and the door swings to the kennel side. Piranha Lox® technology is integral to the Versa Feeder — the two included bar mount systems lock compatible bowls and pails into position inside the feeder, and the spring-loaded release tab on each mount allows any bowl or pail to be swapped out in one motion for cleaning or refilling without tools. The two-slot adjustable mounting system on each side of the center pivot allows bowl and pail height to be set independently, accommodating the full range of dog sizes across a mixed boarding facility.

Compatible pail and bowl combinations for the 360 Versa Feeder: 4 Quart Stainless Steel Pail with Insert Block paired with the 1 Quart Stainless Steel Bowl; 2 Quart Stainless Steel Pail with Insert Block paired with the 1 Quart Stainless Steel Bowl; or the 1 Quart Double Stainless Steel Bowl using the center mount position.

What's Included

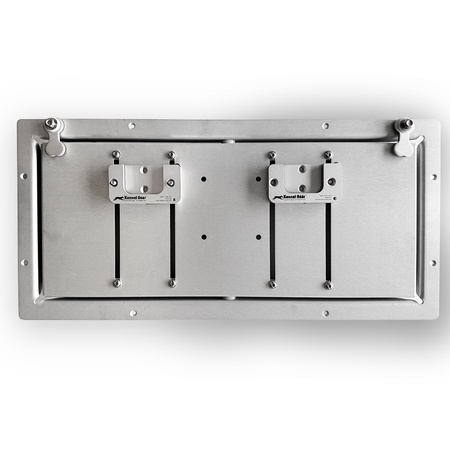

• 360 Versa Feeder — aluminum frame and door
• Bones locking tab closures
• Two .5" bar mount systems with .75" stainless steel thumbscrews

Approximate Dimensions

• Outer frame: 22" W x 10" H x 2" D (with bar mounts installed)
• Swivel door: 19.5" W x 8" H
